Product Description
UHPPOTE ANSI Standard Heavy Duty Electric Door Strike Lock Fail-Secure or Fail-Safe Adjustable for Access Control Cylindrical Locksets (Input Voltage 12VDC)
Wiring Diagram:
- This Fail-Secure lock need wired to the NO and COM contact of the access control system. (Other parts shown on this picture not included.)
Work With Mechanical:
- Strike lock need work with cylindrical lockset which need buy separately.
- Before placing order, please check the size of door’s frame to avoid wrong purchase.

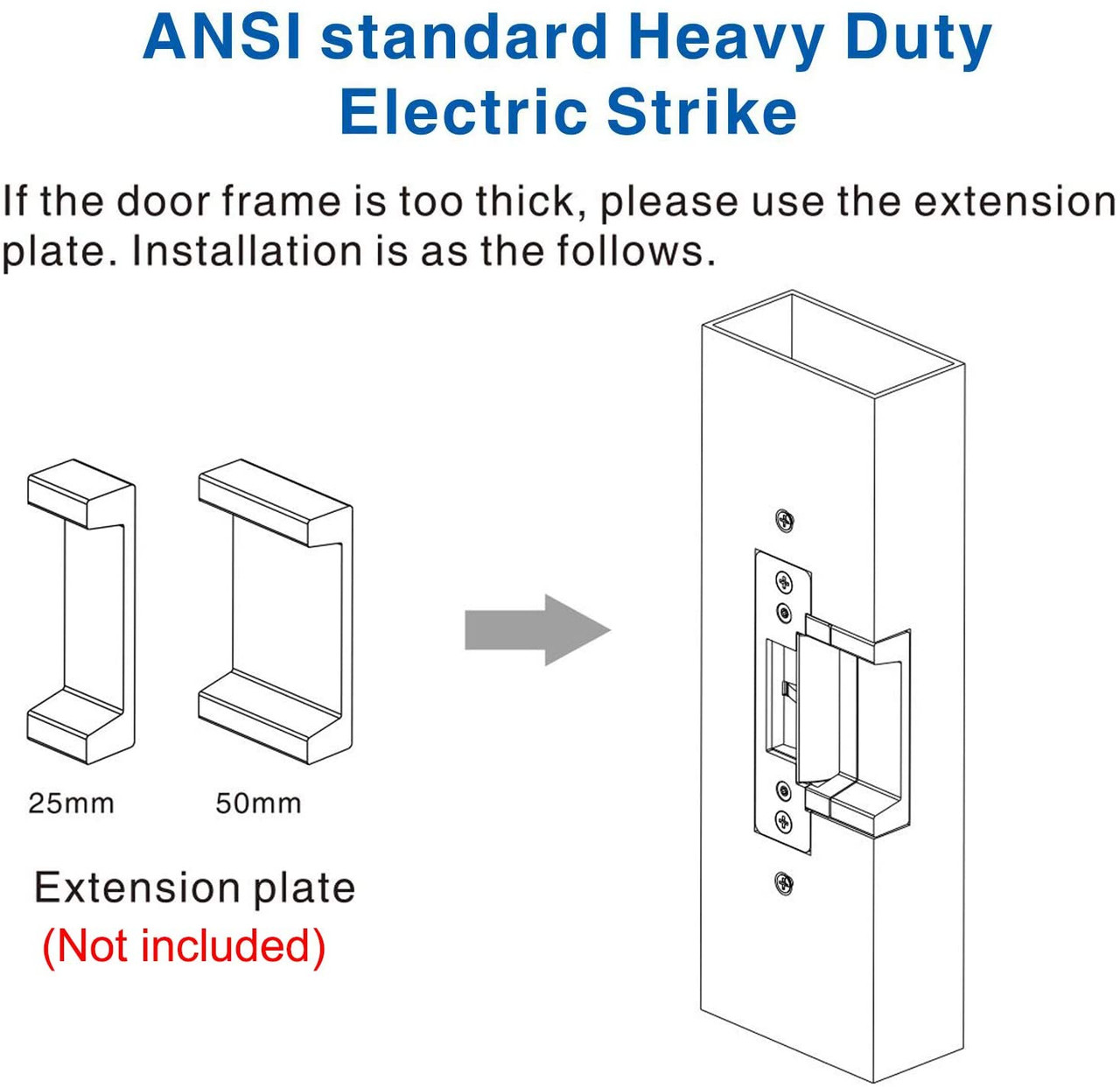

Installtion:
- Suitable for metal and wooden door frame
- Before placing order, please check the size of door’s frame to avoid wrong purchase
Selecting Fail-Safe or Fail-Secure Operation:
- You can set the operation mode of the Fail Safe or Fail Secure (Factory default: Fail-Secure)
- Remove the locking screw and loosen the sliding screw
- Slide the sliding screw to the desired setting. Replace the locking screw and retighten both screws
- Fail-Safe (NC): Unlocked when power is removed
- Fail-Secure (NO): Locked when power is removed
More Details:
|
|
|
|
|---|---|---|
Demo:
| Overall Dimensions:
| Package:
|
